XAA Debugger

The XAA (Cross-App Access) Debugger tests an MCP server and its authorization setup. MCPJam acts as both:

• The identity provider, which signs the ID token and ID-JAG.
• The client/agent, which presents the ID-JAG and uses the access token.

​

Before You Run the Test

​

Trust MCPJam’s Identity Provider

The XAA Flow header shows three URLs: Configure your authorization server with the values it requests. The Issuer URL identifies MCPJam’s test identity provider, the OpenID Config URL provides discovery metadata, and the JWKS URL provides the public signing keys.

​

Local and hosted issuers

If MCPJam is running locally and your authorization server is hosted in the cloud, turn on Use hosted issuer in the XAA Flow header. A cloud server cannot reach a local Issuer URL.

​

Other header controls

The header also has an Identity assertion (OIDC / SAML) toggle that sets the format MCPJam mints, covered under Identity assertion format. It also has a Run as control for choosing the simulated identity.

​

Add Your MCP Server

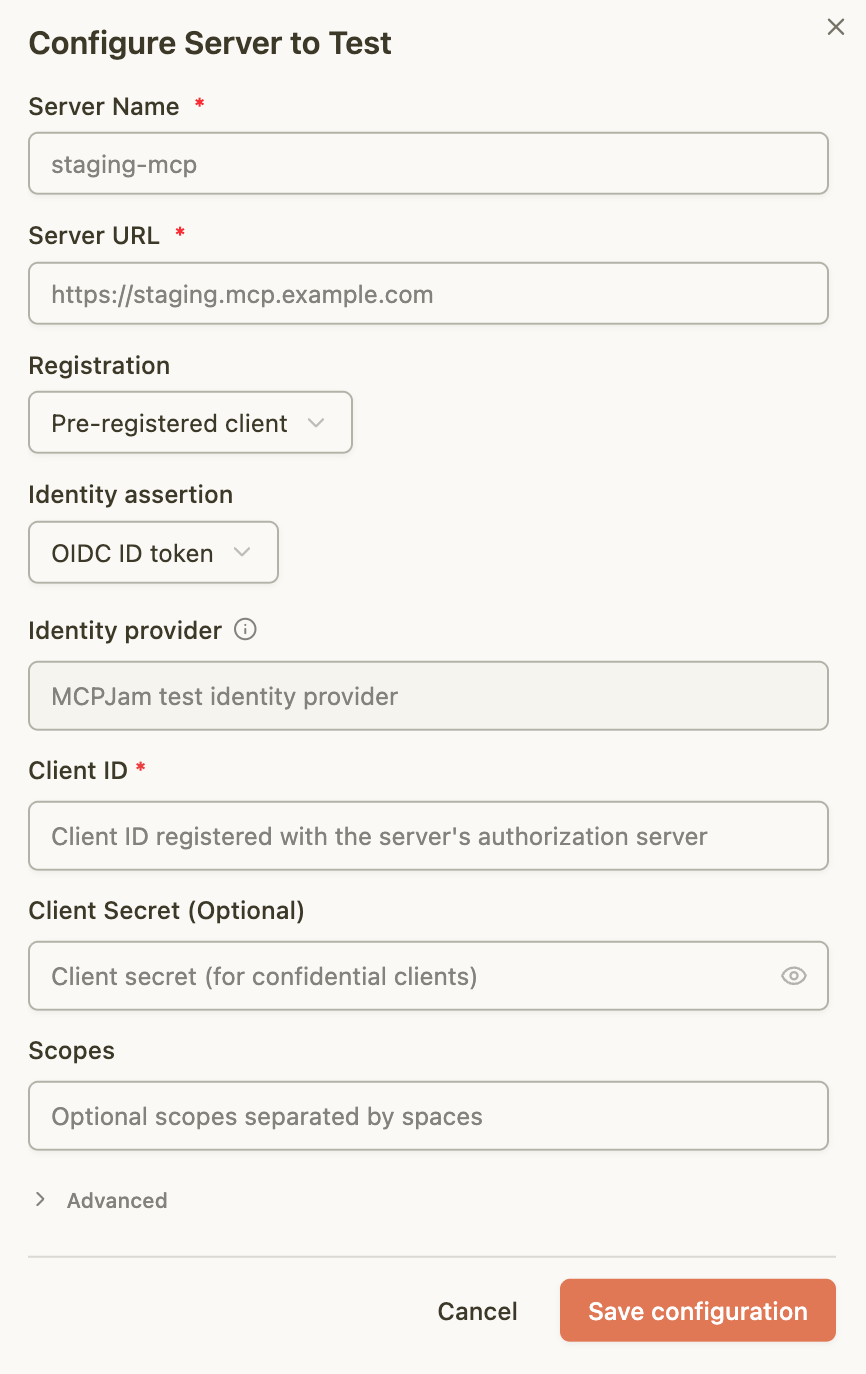

Select Configure Server to Test (or Add Server), enter the MCP server name and URL, then choose how MCPJam identifies itself to the authorization server.

​

Server Configuration

​

Registration Method

• Pre-registered client: Register MCPJam in your authorization server first, then enter the client ID and optional client secret it gives you.
• Client metadata URL (CIMD): MCPJam uses a client metadata URL as the client ID. Your authorization server must advertise CIMD support. The Client authentication control chooses whether MCPJam proves it owns that identity:
  • Public (no client auth): Your authorization server takes the metadata URL at face value. Nothing proves MCPJam owns that identity. This is the default.
  • Confidential (private_key_jwt): MCPJam holds a private key and signs each token request with it, proving it owns the identity. Choose this when your authorization server requires a confidential client.
• Open dynamic registration (DCR): MCPJam registers a client during the test. Your authorization server must provide an open registration endpoint.

​

Identity assertion format

Choose the protocol MCPJam’s identity provider uses to authenticate users.

• OIDC ID token: MCPJam mints an OIDC ID token as the identity assertion. This is the default.
• SAML assertion: MCPJam mints a signed SAML 2.0 assertion, and the ID-JAG carries a saml-nameid subject identifier so a SAML-federated server can resolve the user.

​

Scopes

Enter optional permissions separated by spaces. MCPJam includes them when requesting the ID-JAG and access token.

​

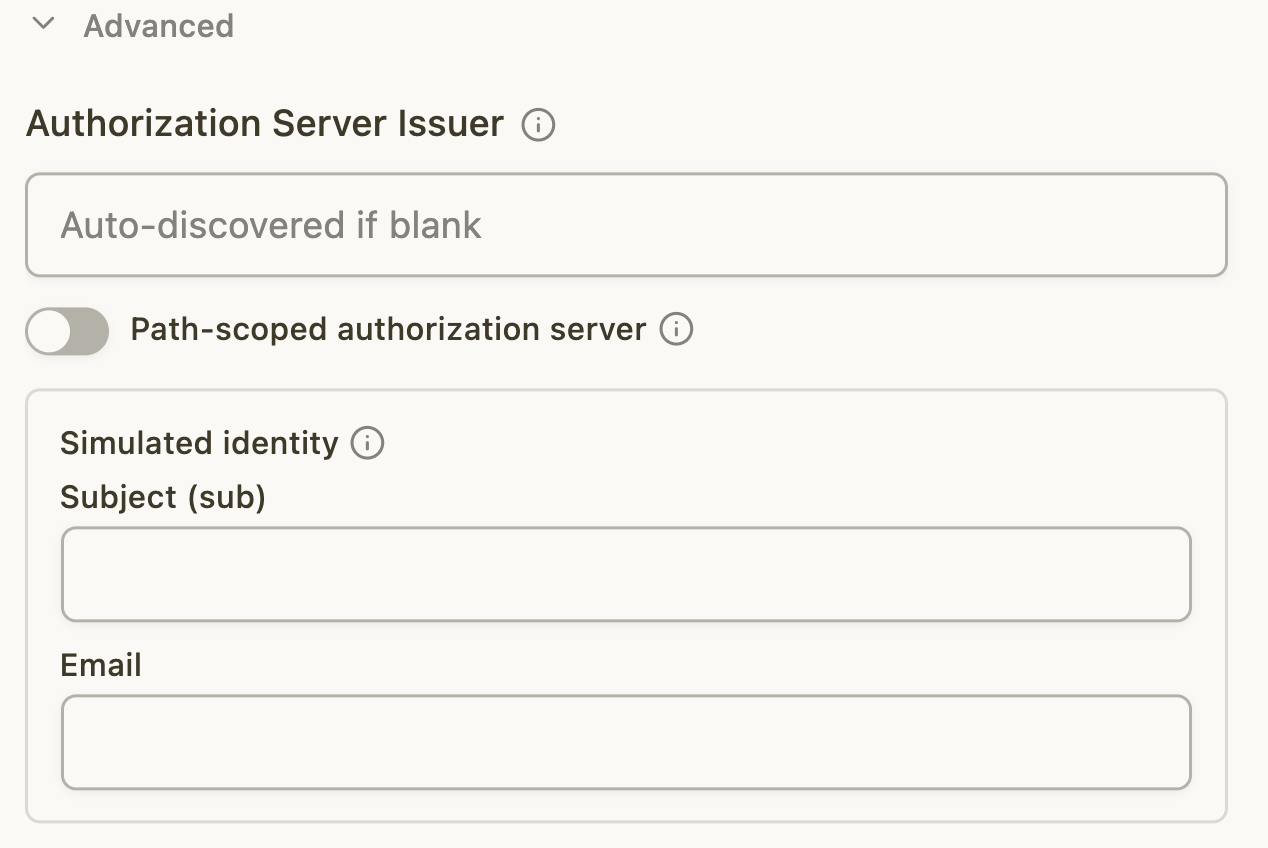

Advanced Settings

​

Authorization Server Issuer

Leave it blank to use the authorization server MCPJam discovers from the MCP server. Enter a URL to use a different authorization server.

​

Path-scoped authorization server

Keep this off for normal RFC 8414 behavior. Turn it on only when the discovered URL and metadata issuer differ on the same origin.

​

Simulated identity

Choose the user MCPJam puts in the ID token. Leave the fields blank to use a built-in demo user (user-12345 / demo.user@example.com).

​

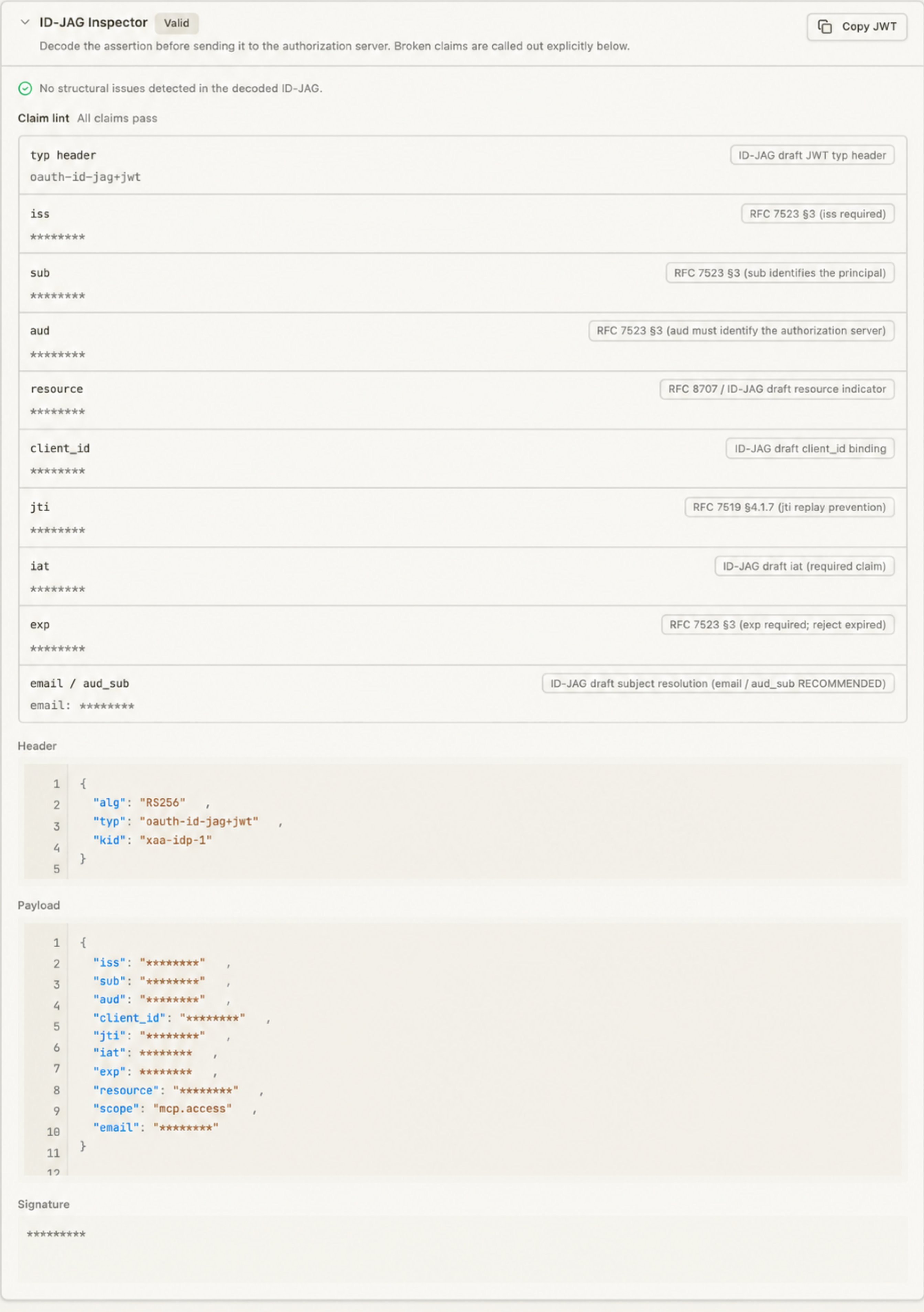

Inspect the ID-JAG

Before MCPJam sends the ID-JAG to the authorization server, the right panel opens the ID-JAG Inspector. Use it to inspect exactly what MCPJam created and identify problems before the token exchange. MCPJam checks each piece of information inside the ID-JAG and shows whether it looks correct or broken. It also shows the relevant RFC or ID-JAG requirement for each check.

​

Header

The JWT header shows:

• alg: the signing algorithm.
• typ: the token type.
• kid: the signing key identifier.

​

Payload

The payload shows the values MCPJam puts into the ID-JAG:

​

Signature

The inspector shows the signed JWT and provides Copy JWT for further inspection. The authorization server verifies the signature using MCPJam’s public signing keys.

​

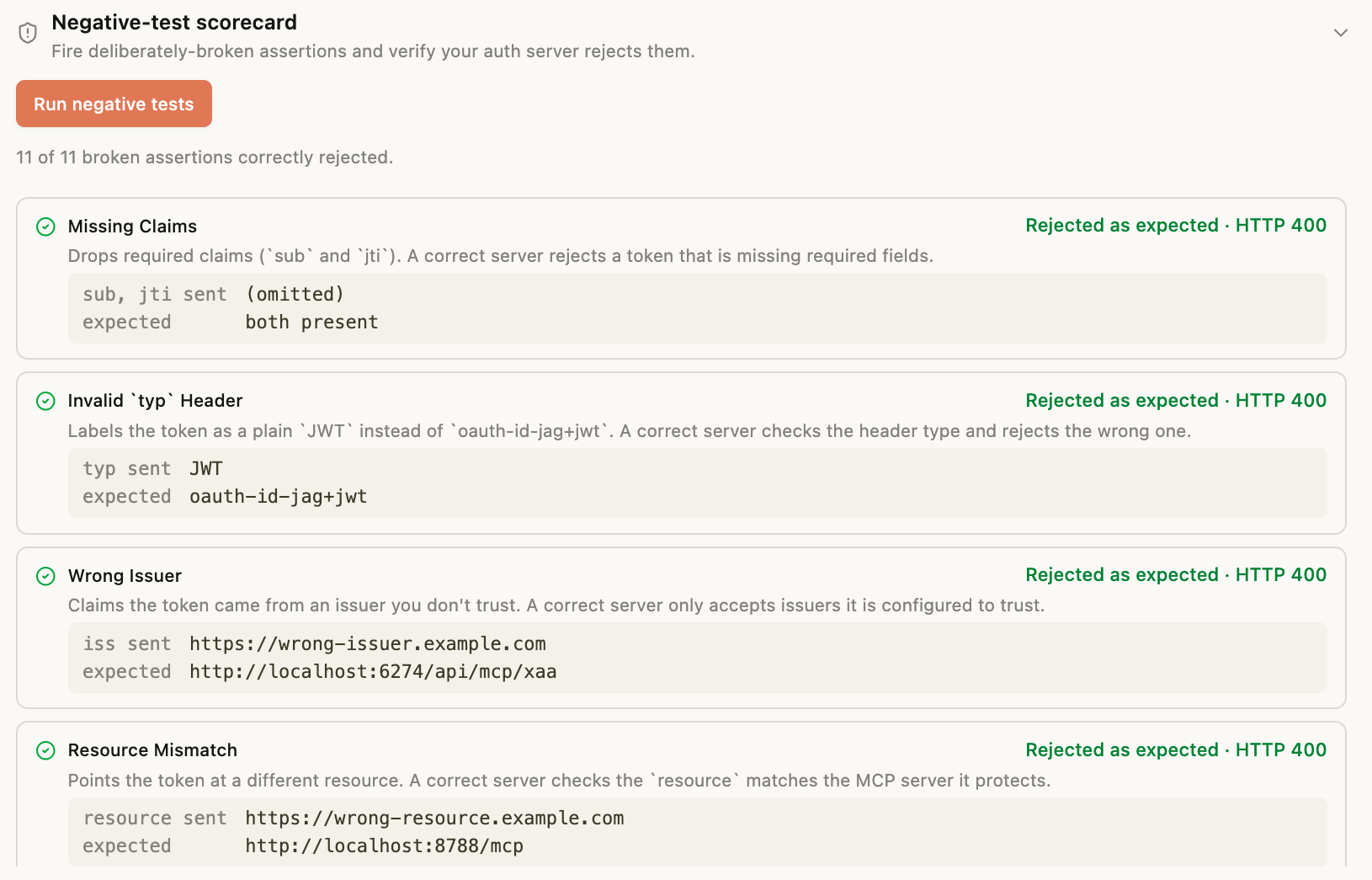

Negative Tests

Checks that your authorization server rejects broken ID-JAGs. Run a successful flow first, then click Run negative tests. A strict check passes when the authorization server rejects the broken assertion. The MCP server is not called during these checks. The scorecard runs these strict rejection checks:

• Bad Signature
• Wrong Audience
• Expired
• Missing Claims
• Invalid typ Header
• Wrong Issuer
• Resource Mismatch
• Client ID Mismatch
• Unknown kid

It also reports two policy probes:

• Unknown Subject
• Scope Denial

No pass or fail here. Your server can accept or reject an unknown user, and can trim the scopes it grants. Just confirm the result is what you expect. These are targeted security and policy checks, not a full conformance test.

​

The XAA Flow

The debugger shows the flow in the sequence diagram and logs each request and response:

1. Discover the MCP server and authorization server. MCPJam asks the MCP server which authorization server protects it, then reads the authorization server metadata.
2. Resolve the client identity. MCPJam uses the pre-registered client, performs DCR, or uses its CIMD URL.
3. Simulate sign-in at MCPJam’s identity provider. MCPJam issues a test ID token.
4. Request an ID-JAG. MCPJam’s identity provider exchanges the ID token for an ID-JAG.
5. Request an access token using the ID-JAG. MCPJam sends the ID-JAG to the authorization server’s token endpoint using the JWT-bearer grant.
6. Call the MCP server. MCPJam sends the resulting access token to the MCP server.

​

Debugging Failures

The right panel shows each flow step, its request and response details, and any available token information. If a step fails, it also provides guidance for diagnosing the problem. This may include:

• The authorization server does not advertise or accept the JWT-bearer grant.
• MCPJam’s issuer or signing keys are not trusted.
• The client identity is missing, unregistered, or not allowed to use the grant.
• The aud, resource, or client_id claim does not match the authorization server’s configuration.
• The authorization server issues a token, but the MCP server rejects it.

Use the compatibility results after discovery and expand each flow step to inspect the exact request, response, and token claims.

​

Related Standards

• MCP Authorization
• OAuth 2.0 Authorization Server Metadata (RFC 8414)
• OAuth 2.0 JWT Bearer Token Grant (RFC 7523)
• OAuth 2.0 Dynamic Client Registration (RFC 7591)
